2005 Ford Crown Victoria Radio Wiring Diagram
Need wiring diagram for 2005 ford crown vic AC. September 6 2020 by faceitsalon.
2005 Ford Escape Audio Pinout
2001 Ford Expedition Radio Wiring Diagram Pics.
2005 ford crown victoria radio wiring diagram. Ford Factory Radio Wiring Diagram Database. 2004 Ford Crown Victoria Radio Wiring Diagram Effectively read a cabling diagram one provides to know how typically the components within the system operate. Dark Green Starter Positive Wire Location.
An expert who has achieved level 1. Whether your an expert Ford electronics installer or a novice Ford enthusiast with a 2002 Ford Crown Victoria a Ford car stereo wiring diagram can save yourself a lot of time. 1987 Ford F150 Ignition Wiring Diagram Pics.
Print the wiring diagram off plus use highlighters to be able to trace the circuit. Red and Light GreenPurple Battery Constant 12v Positive Wire Location. To find fuse diagrams.
2021 Guide For 2003 Ford Crown Victoria No Start Fix. Ford Crown Victoria Radio Wiring Diagram Fuse Box Diagram for 1999 ford Crown Victoria Blog Wiring. Whether your an expert Ford Crown Victoria mobile electronics installer Ford Crown Victoria fanatic or a novice Ford Crown Victoria enthusiast with a 2005 Ford Crown Victoria a car stereo wiring diagram can save yourself a lot of time.
Ford Crown Victoria Radio Wiring Diagram Wrg 7045 Bmw Wiring Diagram E38. 2008 Ford Crown Victoria Radio Wiring Diagram Images. You may have to register to gain access.
Please be sure to test all of your wires with a digital. Starter Positive Wire. Ford Ranger Stereo Wiring Diagram Pics.
This is the same information that the. 2005 Ford Escape Pcm Wiring Diagram. Listed below is the vehicle specific wiring diagram for your car alarm remote starter or keyless entry installation into your 2005-2008 Ford Crown Victoria.
Light BlueRed Car Stereo Antenna Trigger. Theres lots more information on this site for your vehicle. Any user assumes the entire risk as to the accuracy and use of this information.
Ford Crown Victoria Radio Wiring Diagram To properly read a cabling diagram one provides to know how the particular components inside the system operate. And on some radios you might find subwoofer connector in use too. VioletLight Blue Car Radio Accessory Switched 12v Wire.
2006 ford crown victoria wiring diagram police interceptor alternator heated mirror retrofit 2003 no location of ac relay where can i find all diagrams for full stereo radio 2009 mercury 2000 package 2001 not charging 2011 grand ignition switch on a 1995 vic 1991 identification 1996 99 pcm 1985 ltd wire 2018 fuse 2008 battery need 1998 2002 1984 marquis 302 box 2005. If you want all the premium wiring diagrams that are available for your vehicle that are accessible on-line right now - WIRING DIAGRAMS for just 1995 you can have full on-line access to everything you need including premium wiring diagrams fuse and component locations repair information factory recall information and even TSBs Technical Service Bulletins. Ignition Positive Wire.
YellowBlack Car Radio Ground Wire. 2005 Ford Crown Victoria Car Security Wiring Diagram. Please verify all wire colors and diagrams before applying any information.
This 2005 Ford Crown Victoria Fuse Diagram shows two fuse boxes. For example if a module will be powered up also it sends out the signal of fifty percent the voltage in addition to the technician does not know this hed think he offers an issue as this individual would expect a new 12V signal. Ford Crown Victoria Radio Wiring Diagram Ko 4427 2005 ford Crown Vic Ac Wiring Diagram Schematic Wiring.
Battery Constant 12v Positive Wire. The Battery Junction BoxPower Distribution Box located under the hood and the Smart Junction BoxPassenger Compartment Fuse Panel located under the dash to the left of the steering wheel near the brake pedal. 2007 Ford Fusion Wiring Diagram Database.
The list of Ford Stereo Wiring Diagrams that were displayed here will be described in details in the link on every Ford Years and Series as mentioned below. The upper level 03 crown vics also have newly revised cd changer connectors as well. 39 rows Ford Radio Stereo Wiring Diagrams.

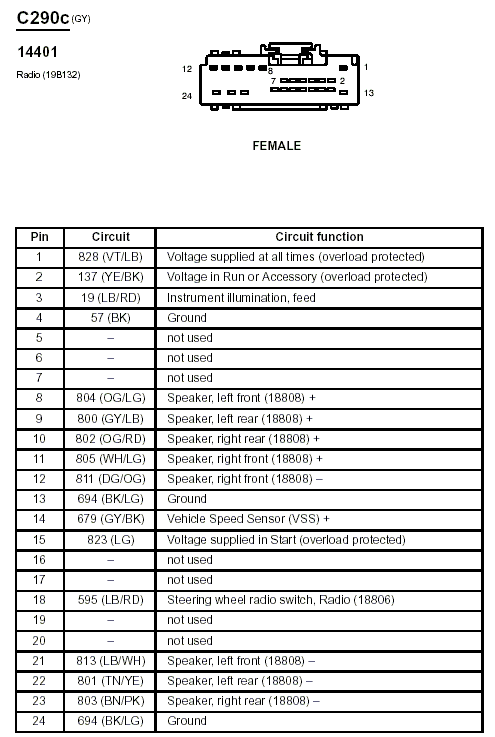

2000 Ford Crown Victoria Car Radio Stereo Wiring Diagram Car Radio Battery Constant 12v Wire. This radio connector diagram is from a 2004 crown victoria and the wiring color coding scheme will vary on some of the later vehicles. Ford 600 Tractor Wiring Diagram Collection.
Posted on Sep 02 2009. 2005 Ford Crown Victoria Fuse Diagram also Mercury Grand Marquis. One of the most time consuming tasks with installing an after market car stereo car radio car speakers car subwoofer car amplifier mobile amp car amplifier tweeters.
Ford Audio Wire Diagrams. Find all information regarding Ford Stereo Wiring Diagrams in this section. This information outlines the wires location color and polarity to help you identify the proper connection spots in the vehicle.
For instance if a module is powered up also it sends out the signal of half the voltage in addition to the technician does not know this hed think he offers a challenge as he or she would expect the 12V signal. Have watch and find the one that suit with your own Ford Automobile Years and Series. Electrical cabling is actually a potentially hazardous task if completed improperly.
Automotive wiring in a 2005 Ford Crown Victoria vehicles are becoming. One trick that I actually use is to print out a similar wiring plan off twice. One need to never attempt functioning on electrical wiring without knowing the particular below tips and tricks followed by even the the majority of experienced electrician.
When you use your finger or even stick to the circuit with your eyes its easy to mistrace the circuit. 1985 Ford Crown Victoria Ltd Wire Diagrams Pictures S. 2007 Ford F150 Power Window Wiring Diagram Pictures.
2003 Ford Focus Wiring Diagram Pictures. BlackLight Green Car Radio Illumination Wire. Blue Left Front Speaker Positive Wire.
