3 10 INTRODUCTION Holley Performance Products has written this manual for the installation of the LS TERMINATOR X MPFI fuel injection systemThis manual contains the information necessary for the installation of the hardware contained in this kit which includes the ECU wiring and. Holley efi 558 102 ls1 6 24x 1x engine main harness how to set up a terminator x system run nitrous on foxbody mustang motor life infinitybox 550 937f fox body 5 0 kit configuring and wiring sniper for oxide 937 ford mpfi demystifying ignition table of contents inputs outputs quietly positive here s my max c.
Wiring Diagram 110cc Atv How To Wire Chinese Atv Picturesque 110 For Electrical Wiring Diagram Motorcycle Wiring Electrical Diagram
Two powertrain management systems from Holley that offer plug and play control for most domestic V8 engines starting at just 999.
Holley terminator x wiring diagram. I eliminated any car wiring and used strictly the battery. The purpose of this article is to drill down just a little into the igntion wiring for the Holley Terminator Terminator X and Holley Sniper EFI Systems comparing these two it a bit more detail than Ive seen done elsewhere. Here S My Holley Terminator Max A C Wiring Diagram Third Generation F Body Message Boards.
Holley Terminator Wiring Diagram. V5 - General Injector Setup. Wiring diagram is at the bottom of this page.
This manual contains information and diagrams related to wiring most Holley EFI products including ECUs ignition systems nitrous systems watermethanol injection systems sensors and more. There was a good video of a guy installing the terminator x kit in his 94 cobra and he wanted to keep his stock dash working. A34 WB1 HTR Pin A A9 WB1 HTR - Pin B A16 WB1 COMPR1 Pin C.
A24 CAN Lo Pin B A32 CAN Hi Pin A Primary Outputs Idle Air Control IAC The terminated IAC connector is for a 4 wire stepper type IAC Holley PN 543-105. Holley efi 550 903 terminator x 24x 1x system to run nitrous here s my max a c fox body mustang 5 0 kit infinitybox wiring sniper for oxide add on module by 905 58x. I think the strange stuff going on was the backfeeding while playing with the grounds so Im back to square one.
Holley Terminator A C Add On Module By Cur Performance Wiringcpw Lsx Harness Swap Wiring. Holley Terminator X and X Max EFI Systems Tuning Manual Holley Terminator X and X Max EFI Systems Installation Manual Holley Terminator X and X Max EFI Systems for GM LS Truck Engines Wiring Diagram Holley Wiring Harness for GM LS1 LS6 and 97-07 Truck Engine Even mild lumpy camshafts were no problem. V5 - Racing Tranny Output Info.
The Terminator X will allow you. Sniper Ignition Wiring with Holley Hyperspark Distributor and Ignition. If you can here just looking for tips on wiring the Terminator or Terminator X EFI ignition control you can jump to that.
The ignition output on your POWERCELL will supply the key-on power to their system. 3 11 Important Wiring Dos and Donts. Here is a link to a pretty good.
If these devices or any other CANbus device is not being used there is no need to do anything with this connector. Keep in mind the 46RE has a mechanically controlled 1-2 and 2-3 shift meaning you must run a TV cable to ensure no damage is done to the transmission. I changed the truck injector harness for an LSx one.
Take control of your LS engine with Terminator X. Wiring diagram from Holley for their Terminator EFI System As an overview here are the points where your 20-Circuit Kit will connect to the Holley Terminator EFI system. Terminator X features real-time fuel learn high impedance injector drivers an integrated 1bar MAP sensor and 4.
Here is a wiring diagram showing the installation of the complete HyperSpark ignition including the distributor and optinoally-available ignition box and coil. Holleys Terminator X and Terminator X Max ECUs are affordable easy-to-use standalone engine management systems for the Ford Coyote engine. Holley Performance Products has written this manual for the installation of the TERMINATOR X MPFI fuel injection system.
So I setup and got the holley terminator x kit for my 95 mustang and using the fox body kit as it plugs in to all the sensors as of now. This manual contains the information necessary for the installation of the hardware contained in this kit which includes the ECU wiring and 35 touch screen. If your HEMI swap project is using a Chrysler 46RE Transmission commonly found in 1996-2003 Dodge Ram - Dakota or Durango V8 trucks you can finally control your transmission through the Terminator X MAX ECU.
This means we didnt have to buy a new distributor. Why settle for a junkyard or factory ECU with a cumbersome aftermarket tuning interface when you can get complete control of your engine self-learning fuel strategies and the. I suspect a bad ECU.
Terminator X and Terminator X Max. Dont settle for a junkyard ECU with a cumbersome tuning interface when you can have complete control of your engine self-learning fuel strategies and the proven race-winning technology of Holley EFI at a budget-friendly price. Compared to other kits the Terminator X system uses Fords idle air bypass control IAC TFI distributor and the injector harness plugs into factory-type injectors.
35 Terminator X handheld. That compares the terminator-X line to the other Holley products. Terminator X and X Max systems require a Bosch 49 PN 554-155 wide band oxygen sensor and require the adapter harness included with the Terminator X be used.
They feature extremely simple plug-and-play designs using factory connectors to make installation quick and easy. Video about the Terminator - X line. Terminator X and Terminator X Max.
Same result low readings. Sensors must be purchased from Holley as they are calibrated specifically for use with Holley EFI systems. Part number 550-937F is a plug-and-play solution that includes a new harness to replace the crusty wiring in a Fox Mustang.
The Holley 550-917 Terminator X Max. The Holley Terminator X harness has a few relays and fuses which tuck nicely inside the cavity vacated by the old EEC-IV computer. Here is an Excel Spreadsheet.
Configuring And Wiring Sniper Efi System For Nitrous Oxide
Efi Ignition Wiring Stangnet
Diagram Mazda Rx8 Ignition Wiring Diagram Full Version Hd Quality Wiring Diagram Codiagram Amicideidisabilionlus It
Holley Efi 550 937f Terminator X Fox Body Mustang 5 0 Efi Kit
Holley Efi Terminator X Ls2 Ls3 Late 58x 4x Ls Truck Mpfi Kit Part 550 905 Tick Performance Inc

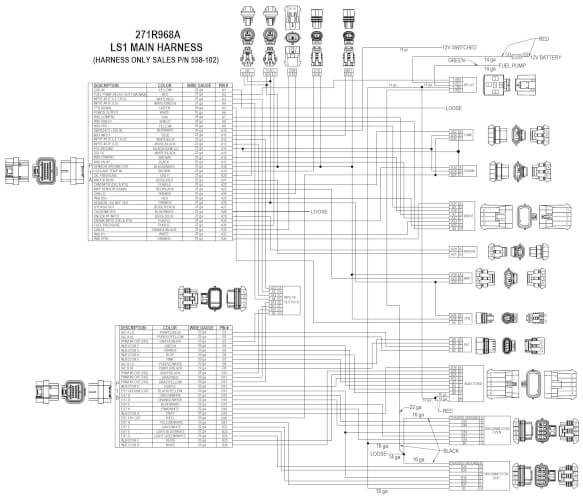

Holley Efi 558 102 Ls1 6 24x 1x Engine Main Harness
